Default Importing SVG and converting points/lines to 3d objects - 30.11.2010, 19:12

Hi,
I'm new to cheetah but so far i'm impressed with the ease of use. I'm having a little trouble understanding how best to accomplish the following.

I have SVG file of a graph (sample attached) and I want to import it and then have the lines converted to tubes/cylinders and the nodes converted to disks.

Since the lines are imported as bezier splines, is there a way to take an instance of an object and then do a copy parameterized instance to splines? If so any pointers would be appreciated. (Basically hoping I don't have to manually extrude each spline/line and add the points.

Thanks,
IB
Attached Files
File Type: zip smallworld_100.svg.zip (12.3 KB, 133 views)

Reply With Quote
Old
  (#2)
frank beckmann (Offline)
Erfahrener Benutzer

frank beckmann's Avatar

Posts: 11,967
Join Date: 12.07.2005
Default 30.11.2010, 19:44

Hi and welcome.
Are you expecting a scriptable solution as we are in the scripting area of the forum? If not - have a closer look into the attached file and letīs hope it might help you start with your project.
Your SVG is quite scary and I donīt know what youīre after right now.

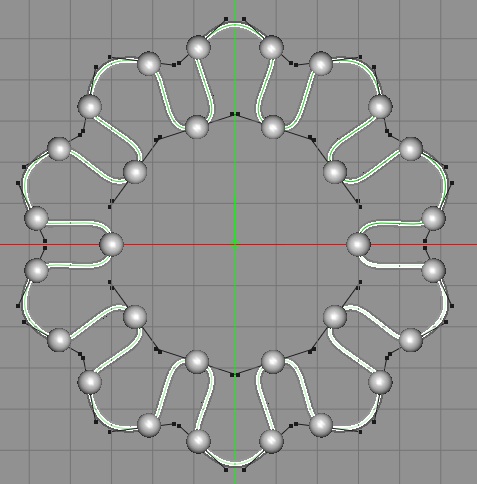

I made a simple file from 2 splines and Cheetah3dīs instancing system. That means I have a ball per control point and a sweep object from the same spline plus a six-sided edge spline as a diameter.

Have fun.

Cheers
Frank
Attached Images

Attached Files
File Type: zip InstancingPerSpline.jas.zip (5.6 KB, 119 views)

Reply With Quote
Old
  (#3)
ibzero (Offline)
Neuer Benutzer

Posts: 4
Join Date: 30.11.2010
Default 30.11.2010, 20:59

Frank,
Thanks for the quick turn around. Your example helps, but I was hoping for a scriptable solution (programmer/designer by trade). The SVG is a social network graph and I need to be able to import several of these and turn them into 3D objects (although really they'll be 2d planes extruded and overlaid onto of some 3D environment scenery.

I would like the lines to act as springs for animation purposes (e.g. one of the visualizations involves introducing an impulse on a node and watching the waveform propagate through the network. I did find another post where you mention importing as pdf (this worked better for me and I was able to extrude) but when importing as a pdf it treats the entire network as one object which is problematic as i need to be able to color nodes and edges as part of the animation.

I'll take a deeper look at the example you sent and see if I can get where i need to go. If I haven't made things clearer in the above, please disregard and i'll wait till i can ask a better question.

Thanks,
IB

Reply With Quote
Old
  (#4)
tg_jp (Offline)
Erfahrener Benutzer

Posts: 986
Join Date: 09.04.2005
Default 03.12.2010, 08:36

Hello

here is script's approach. please check it.

it's a Tool script, so place it into ~/Library/Application Support/Cheetah3D/scripts/Tool folder.

I tested with your file, and some my svg file.

regards.

tg_jp, Hiroto.
Attached Images

Attached Files
File Type: zip SVG Graph Loader.js.zip (2.9 KB, 144 views)


Blog ( mainly japanese ): http://www.tres-graficos.jp/blog/
Twitter ( almost japanese ): http://twitter.com/tg_jp

Last edited by tg_jp : 03.12.2010 at 09:06.

Reply With Quote
Old
  (#5)
ibzero (Offline)
Neuer Benutzer

Posts: 4
Join Date: 30.11.2010
Default 03.12.2010, 20:00

This is awesome, I had to resort to manually doing this for a short term deadline, but this is exactly what I was looking for to start diving into the scripting capabilities of C3D.

Thanks again, its refreshing to find a true community around a tool and with such helpful guru's.

IB

Reply With Quote
Old
  (#6)
ibzero (Offline)
Neuer Benutzer

Posts: 4
Join Date: 30.11.2010
Default 03.12.2010, 20:01

Oh and for the search engines: This is a possible solution/pipeline for visualizing network graphs in 3D with gephi and cheetah3d
